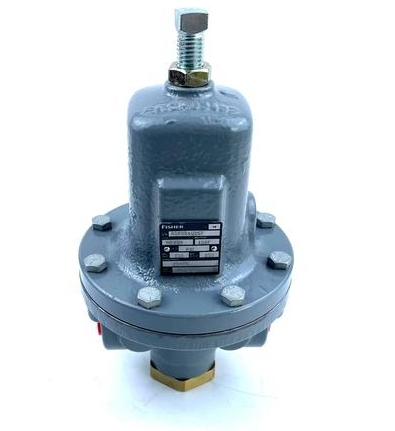

Fisher 627 Regulators
Fisher 627 series direct-acting pressure reducing regulators are suitable for low and medium-high pressure systems 1, 627 series regulators, there are 627, 627H and other outlet pressure regulators
2、Inlet pressure up to 138bar
3、Outlet pressure 0.34-10.3bar 9.7-34.4bar
4、Flow rate up to 4800Nm3/h
5, caliber 1 inch and 2 inch, NPT thread and flange connection
6、The regulator can be widely used in natural gas, liquefied gas, artificial gas, air and so on.
Specification
Valve body size and end connection.
1“ or 2” NPT end connection
NPS1 or 2/DN 25 or 50: CL150 RF, CL300 RF, CL600 RF Flanged End Connections Inlet Pressure
NPT steel: 2000 psig/138 bar
Flanged steel: 1500 psig/103 bar
Ductile Iron: 1000 psig/69.0 bar Outlet Pressure Range 6 ranges from 5 to 500 psig/0.34 to 34.5 bar Pickup Methods
Models 627, 627H, or 627R: Internal pressure withdrawal
Models 627M, 627HM, or 627MR: 1/4 NPT internal control line connection externally to the diaphragm housing Temperature Range -20° to 180°F/-29° to 82°C Approximate Weights
Ductile iron or steel housing: 10 lb/5 kg Aluminum housing: 6.3 lb/3 kg
