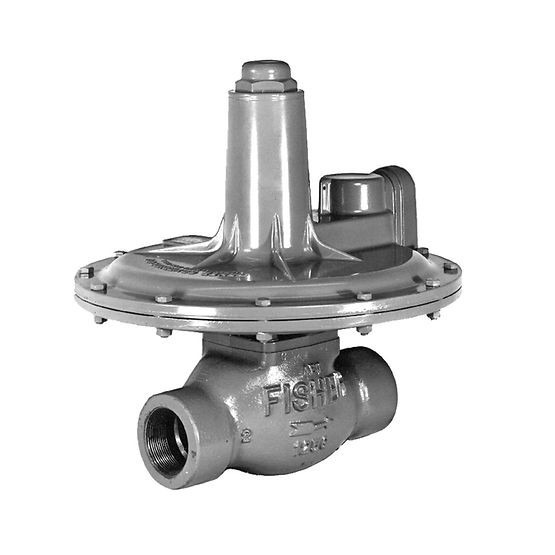

FISHER MR95H-53 Cast Iron High-Pressure Reducing Regulator 1 Inch DN25
FISHER MR95H-53 cast iron pressure regulator, 1" DN25, 70-150 PSI outlet, stainless steel diaphragm, 250 PSI max.
Product Details
Brand: FISHER
Type: Pressure Regulator
Model: 95H-53
Valve Body Material: Cast Iron
Spring Seat Material: Cast Iron
Diaphragm Material: Stainless Steel
Technical Parameters: 1 INCH DN25, Outlet Pressure: 70-150 PSI
Maximum Operating Pressure: 250 PSI
FISHER MR95H-53 is a high-outlet-pressure direct-operated pressure reducing regulator engineered for demanding industrial applications requiring elevated downstream pressure delivery. Constructed with a rugged cast iron body and spring seat, this regulator delivers proven structural durability and reliable performance in standard industrial operating environments. The high-performance stainless steel diaphragm ensures superior corrosion resistance and excellent mechanical responsiveness, providing accurate pressure regulation and consistent sealing integrity across extended service life.
Designed for 1-inch (DN25) pipeline connections, the MR95H-53 maintains precise outlet pressure control within the elevated 70-150 PSI range, with a maximum inlet pressure rating of 250 PSI. This higher outlet pressure configuration distinguishes the MR95H-53 from standard low-pressure variants, making it particularly suited for applications such as compressed air distribution, pneumatic system supply, high-pressure steam control, and process equipment requiring elevated pressure delivery.
