Axial Flow Valve Operating Pressures
AFV Series
300
300
300
600*

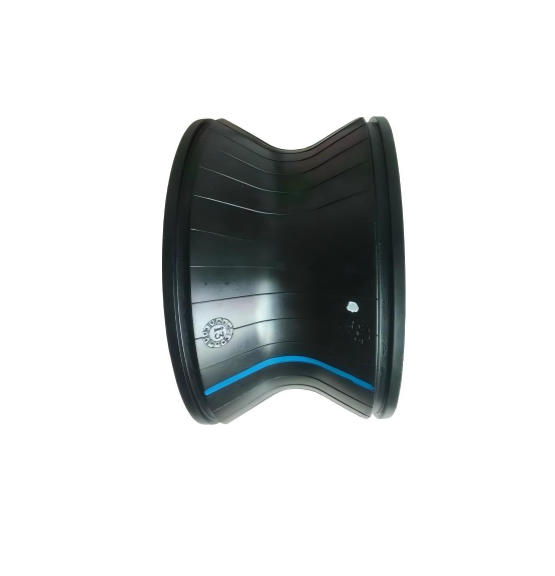

Sleeve Number
5L
5
7
7
Composite Block Manifold Operating Parameters
Cracking
1.5 psid
3.5 psid
14 psid
30 psid
Full Open
5 psid
15 psid
30 psid
60 psid
Inspirator Block Manifold Operating Parameters
Cracking
0.5 psid
1.5 psid
6 psid
12 psid
Full Open
1.7 psid
7.5 psid
19 psid
25 psid
Maximum Operating Conditions
Continuous
30 psid
125 psid
500 psid
1000 psid
Intermittent**
50 psid
180 psid
720 psid
1440 psid
*Series 600 available in 2″, 4″, 6″, and 8″ only.
**Intermittent is defined as total time in service ≤ 30 days at this intermittent pressure.
